About Technica Engineering
Technica’s hardware products are designed for engineering excellence.
Modern vehicles rely on high-speed, data-intensive architectures, demanding precision hardware for validation.
Technica Engineering provides cutting-edge hardware products to ensure accuracy, efficiency, and scalability for automotive testing.
MediaConverters
Enabling real-time conversion and communication between Automotive Ethernet and standard Ethernet interfaces. Designed for low latency and lossless transmission. Supporting various advanced features for flexible integration into network topologies.
Capture Modules
Engineered to capture complete in-vehicle network traffic with nanoseconds-level timestamping and protocol support, enabling precise diagnostics and analysis.
Enhanced Ethernet Switches
Enhanced Ethernet Switches from Technica Engineering offer comprehensive network‑testing functions, including time synchronization, VLAN features, advanced filtering, traffic shaping, and multiple hardware variants. Visit the product category to view the full capabilities.
Product Categories

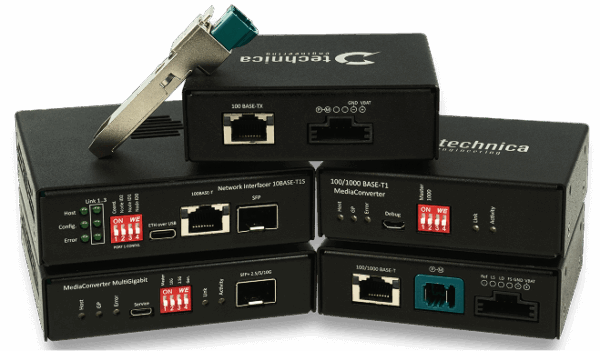

MediaConverters
Devices from MediaConverter product family provide reliable media conversion between Automotive and Standard Ethernet standards with flexible configuration options. They support various features for diagnostic, monitoring, safety or power efficiency. This product family ensures high-performance connectivity for demanding automotive applications.
- Configuration: DIP switch, PC application or web-based configuration
- Diagnostics: CRC errors, signal quality indicators
- Port status: Status polling
- USB interface for direct device interaction
- Integrated test modes for validation and troubleshooting
- Frame generator for generating traffic
- Firmware updates possibility
- MACsec support (for secure communication)*
- TC10 Wake/Sleep functionality*
- Egress mirroring and traffic routing*
*Note: Availability of advanced features may vary by model
Variants include: 100BASE-T1, 100/1000BASE-T1 (MATENET & H-MTD), MultiGigabit, Network Interfacer 10BASE-T1S, and SFP/SFP+ Module.

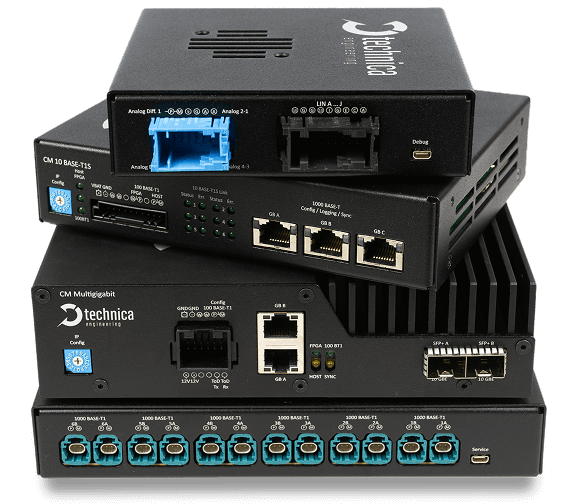

Capture Modules
Capture Modules are built to log complete in-vehicle network traffic with nanoseconds-level hardware timestamping. They support gPTP/PTPv2 time synchronization, startup buffers, and TECMP & ASAM CMP protocols with Wireshark integration. They support:
- Open TECMP Protocol (based on ethernet) + ASAM CMP support
- Configuration via webserver
- Time synchronization of multiple devices (via IEEE 802.1AS)
- Precise hardware timestamping (nanoseconds resolution)
- Startup buffer (internal memory)
- Output traffic shaping
- AVB/TSN traffic
- Cascading
- Transmit (TX) capability
- Adaptative lossless compression
- Optimized startup
- Advanced filter and protocol options
Variants include: 1000 High, 100 High, Ethernet Combo, LIN Combo, CAN Combo, SerDes GMSL2/3, MultiGigabit, ILAS Sniffer, Sense, 10BASE-T1S.

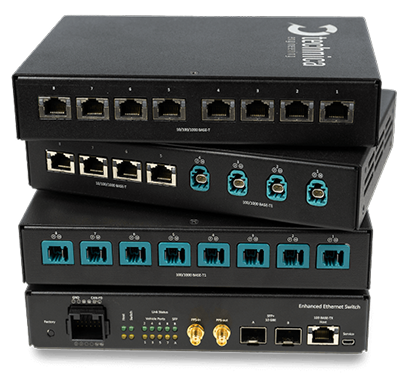

Enhanced Ethernet Switches
Technica Engineering’s Switch-Based products are the ideal development tools for testing and validating automotive Ethernet vehicle networks. They support:
- Configuration via webserver
- Remote control API
- ARL table: Static/dynamic
- Port segmentation: Creation of local segments
- Single / double tagged vlans: Single (802.1Q), double (QINQ) tagging
- Egress VLAN remarking
- Port statistics: Dashboard
- Time synchronization: gPTP (8021.AS-2011/2020) , PTPv2 (IEEE 1588-2008) and PTPv2 to gPTP bridge
- Advanced filtering (up to first 96 bytes)
- Ingress rate limiter: Selection by advanced filter marking with up to 4 flow IDs
- Traffic shaping (strict policy and/or weighted round robin)
Variants include: RJ-45, MACsec Hybrid, MACsec H-MTD, MACsec MATENET, Media Gateway.
