The Capture Module Sense is designed to reliably measure and log analog signals in automotive environments. It enables engineers to gain precise insights into analog signals behaviors across the vehicle thanks to its current, voltage, and temperature monitoring capabilities. Whether in the car or in the test bench, it ensures consistent and synchronized data collection, making it an essential tool for testing, validation, and development workflows.

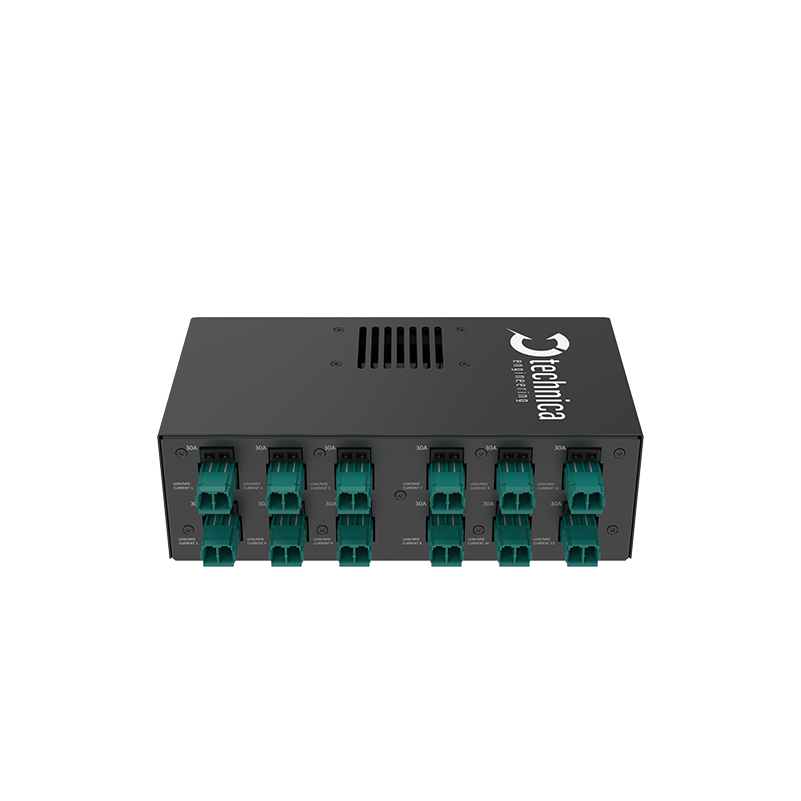

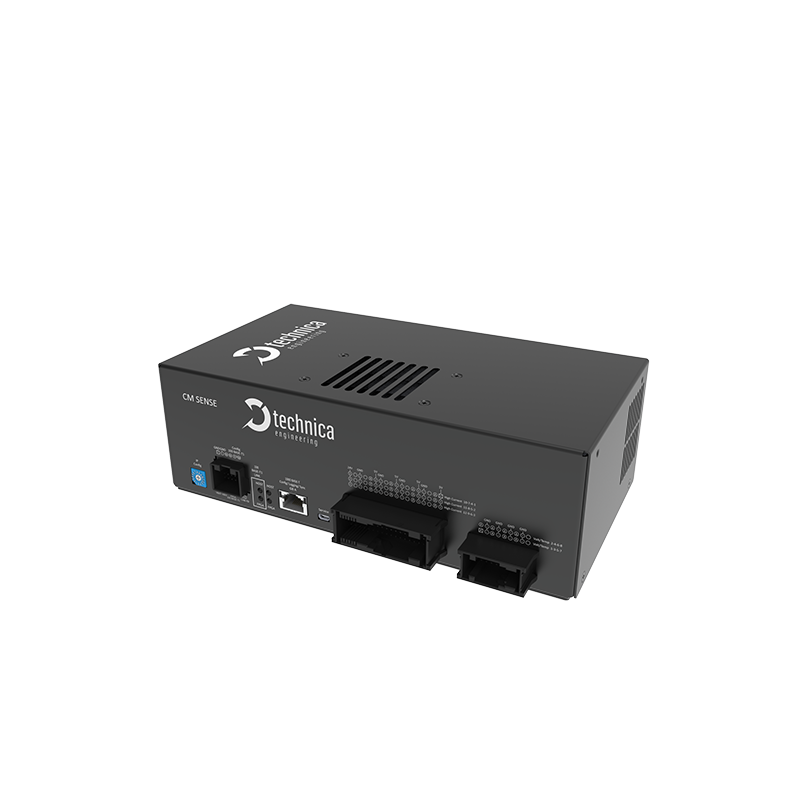

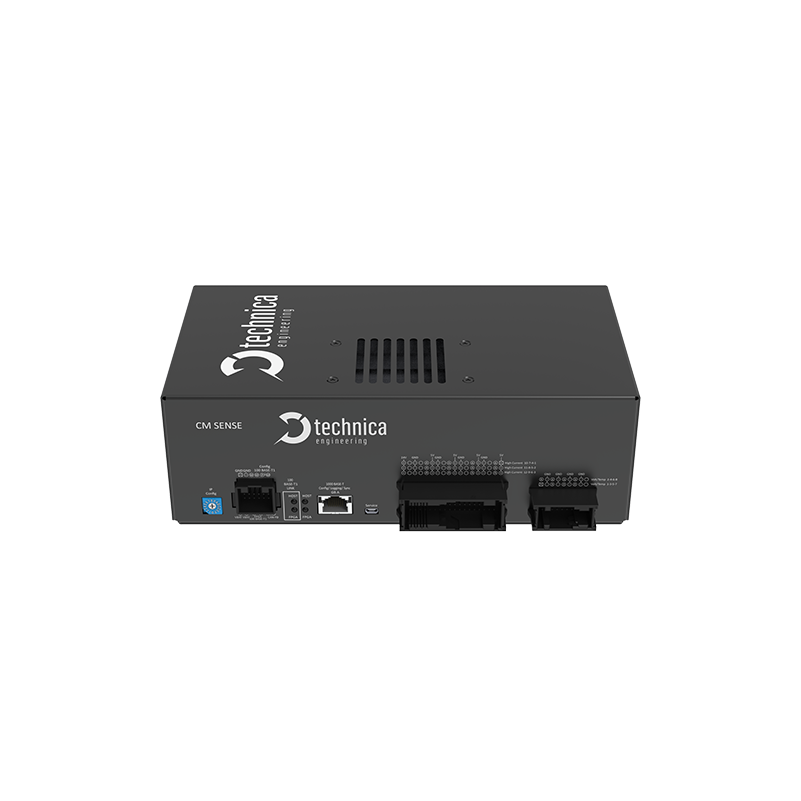

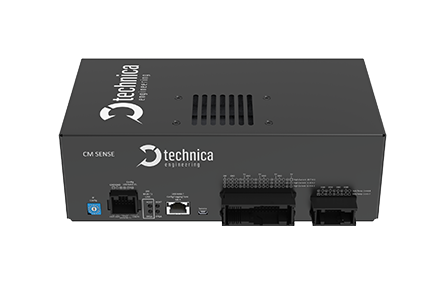

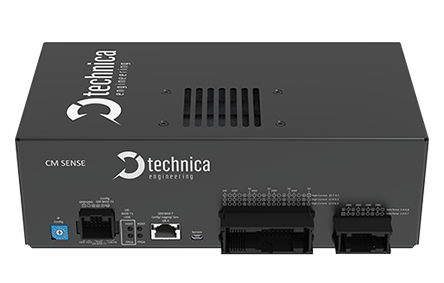

Capture Module Sense

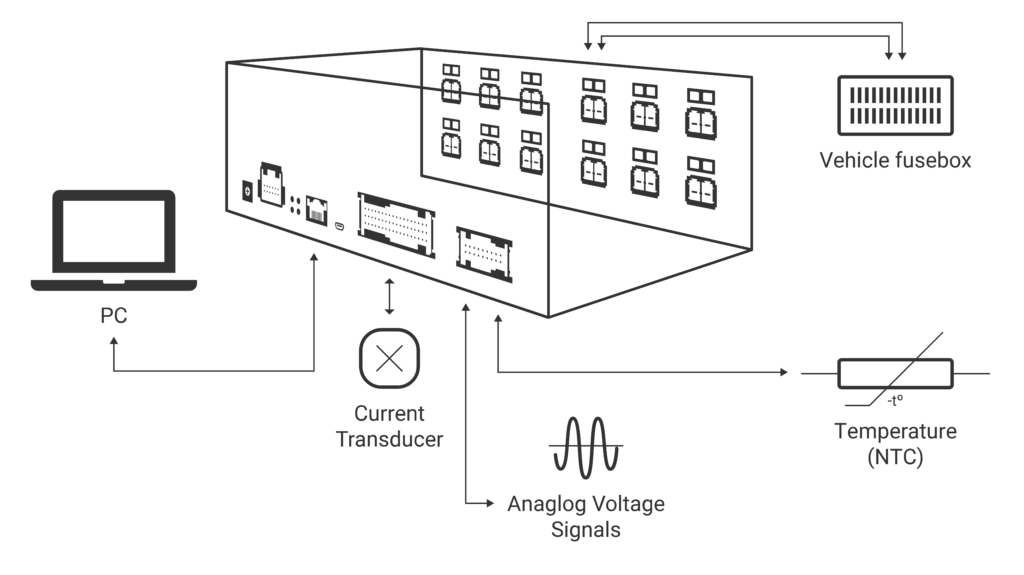

The Capture Module Sense is an analog measurement device designed to measure in- vehicle analog signals, capturing up to 12 low/mid (up to 30A) current channels, 12 configurable high current channels using external transducers and 8 configurable voltage or temperature (using external NTC based sensors) measurement channels. The measured data is HW timestamped without and sent out to the data sink (e.g. data logger or PC).
Standardized logging protocol
The Capture Module encapsulates logged frames into an ethernet frame adding valuable information such as the HW timestamp, Interface ID, Counter and more in a standardized logging protocol header.
Scalable setups
Several Capture Modules can be combined and used together in the same measurement network. The built-in time synchronization feature allows to synchronize the whole measurement network with the same time base. This makes the Capture Modules very scalable and allows to add other IVN technologies to the measurement setup.
Optimized logging
Startup time is crucial in an in-vehicle-network. Therefore, the Capture Modules are developed to provide an optimized startup time to be ready to log before the ECUs are up and send data. In addition to that, the Capture Module is equipped with an internal buffer to store the first frames (sent from the ECUs), even if the data sink is not yet ready. As soon as the data sink is up and ready to receive data, all the stored data will be sent out. The combination of these features ensures that no frames are lost.
Configuration
The CM offers a flexible and user-friendly configuration through its built-in web server. The device webpage can be easily accessed via a standard web browser. In addition, the possibility to import/export a configuration makes it even more convenient.
Capture Modules are designed to be used in different environments such as in the car, on a development desk or in testbenches. To cover these areas as best as possible, the devices allow continuous operation and a wide temperature range.
Use Case
| Operating temperature | -40 °C to +80 °C |
| Supply Voltage | 6.5 V to 24 V DC (typ. 12 V) |
| Power consumption | 8 Watt |
| IP Protection Class | IP 20 |
| Housing Dimensions | 240 x 130 x 78 mm |
| Weight | 2kg (approx.) |
| Interfaces | 12x Low/Mid current measurement channels, up to 30A using internal hall effect sensors 12x configurable High current measurement channels, using external transducers 8x configurable Voltage/Temperature measurement channels 1x 1000BASE-T (RJ-45) for Config, Logging, Sync 1x 100BASE-T1 (MQS) for Config, Logging, Sync 1x 100BASE-T1 (MQS) for Config 2x Wake in/out (MQS) |
| Phy (in-vehicle) | BCM89811 |
Features of the Capture Module 100 High
| Device Features | Configuration Webpage |
| Wake-/Sleep | |
| Import-/Export of Configurations | |
| Status LEDs | |
| TECMP | |
| Status Messages | |
| Manual IP Configuration via Rotary Switch | |
| Optimized Startup | |
| Hardware Timestamping with nanoseconds of resolution | |
| Time Synchronization (gPTP/802.1AS-2011 AVnu profile or PTPv2 subset) | |
| Packetization | |
| Sensitivity configuration (High current channel) | |
| Voltage/Temperature channel configuration | |
| Core Feature Package | Zero-offset calibration (High current channel) |
* License needs to be ordered separately
Order Information
| Name | Article Number | Cable Set Number* |
|---|---|---|
| Capture Module Sense | TE-1165 | KS-1165 |
*Cable set needs to be ordered separately
